DLRO2
2 A Low resistance ohmmeter
- New Difference Meter for quick data comparisons
- Use long leads at 1 A without compromising test speed
- Safely test the resistance of inductive loads at 1 A
- < 600 V active protection against inadvertent live connections without blowing a fuse
- Ideal for outdoor use with protection against dust and moisture to IP54
- Industry standard safety rated at CAT III 600 V/CAT IV 300 V
- Official Megger supplier
- Delivered at 30+ Indian ports
- Quote within 24 hours
Overview

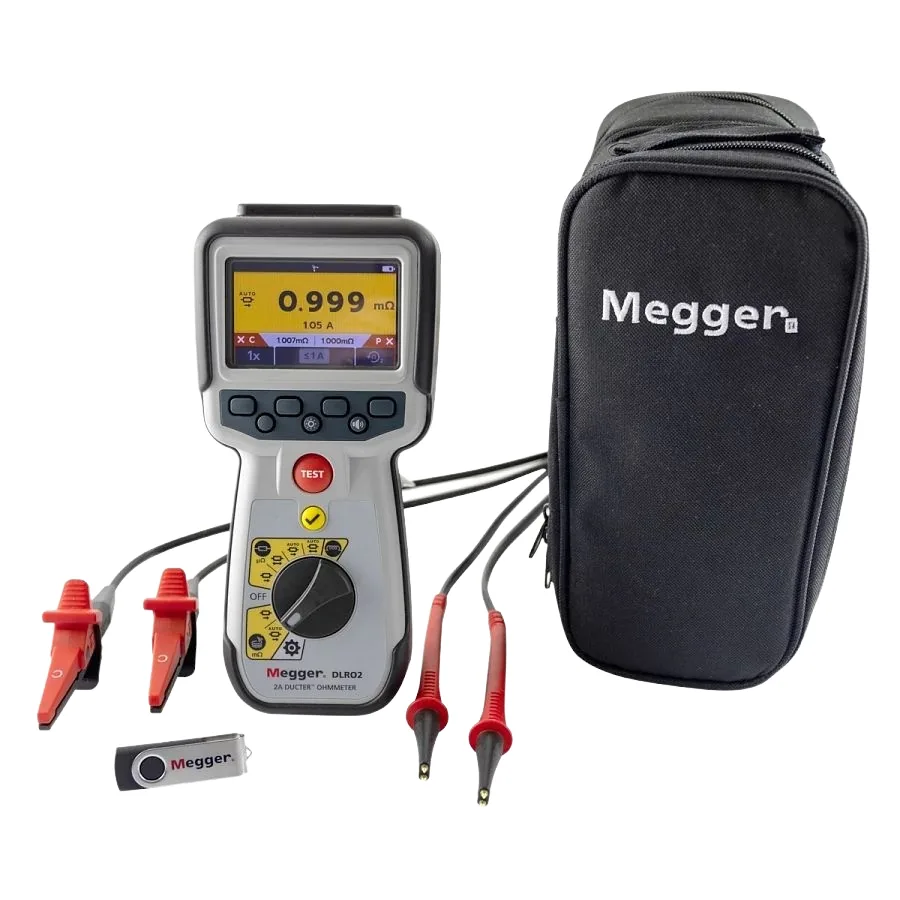

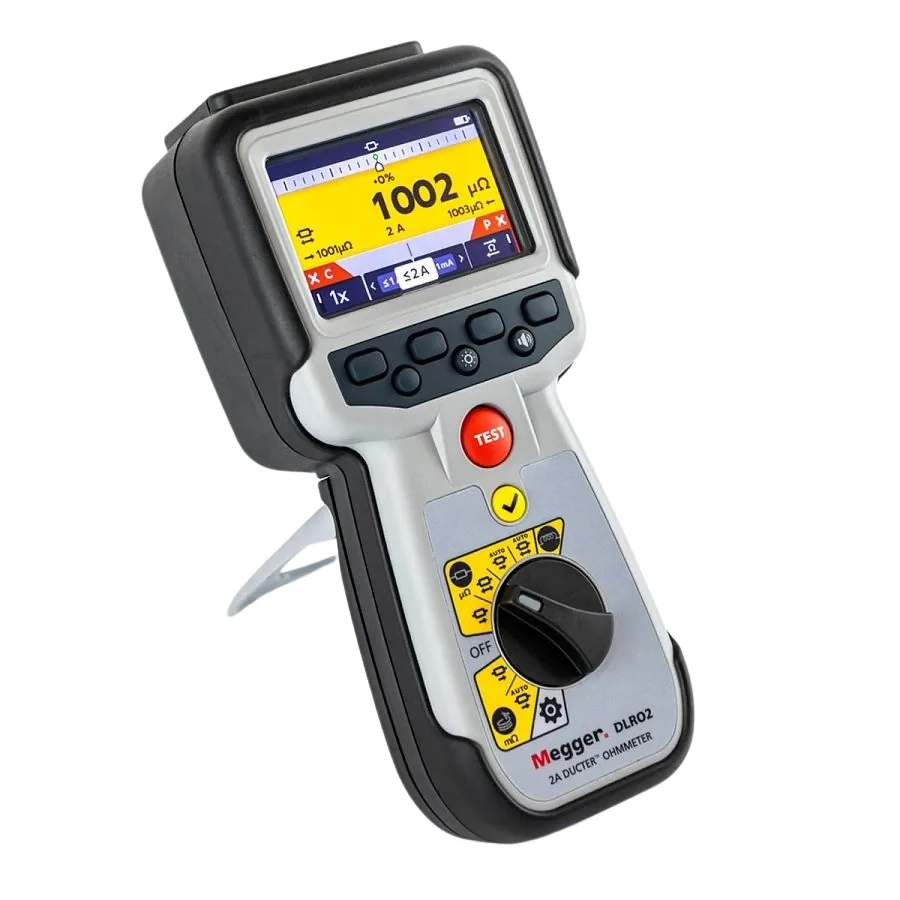

The DLRO2 2 A Low resistance ohmmeter is a handheld instrument designed to give you fast, accurate, repeatable measurements, even in electrically noisy locations. The DLRO2 is the latest in a long line of instruments to proudly display the Ducter™ brand, the Ducter™ testers being as well-known and relied upon as Megger insunsulation resistance testers.

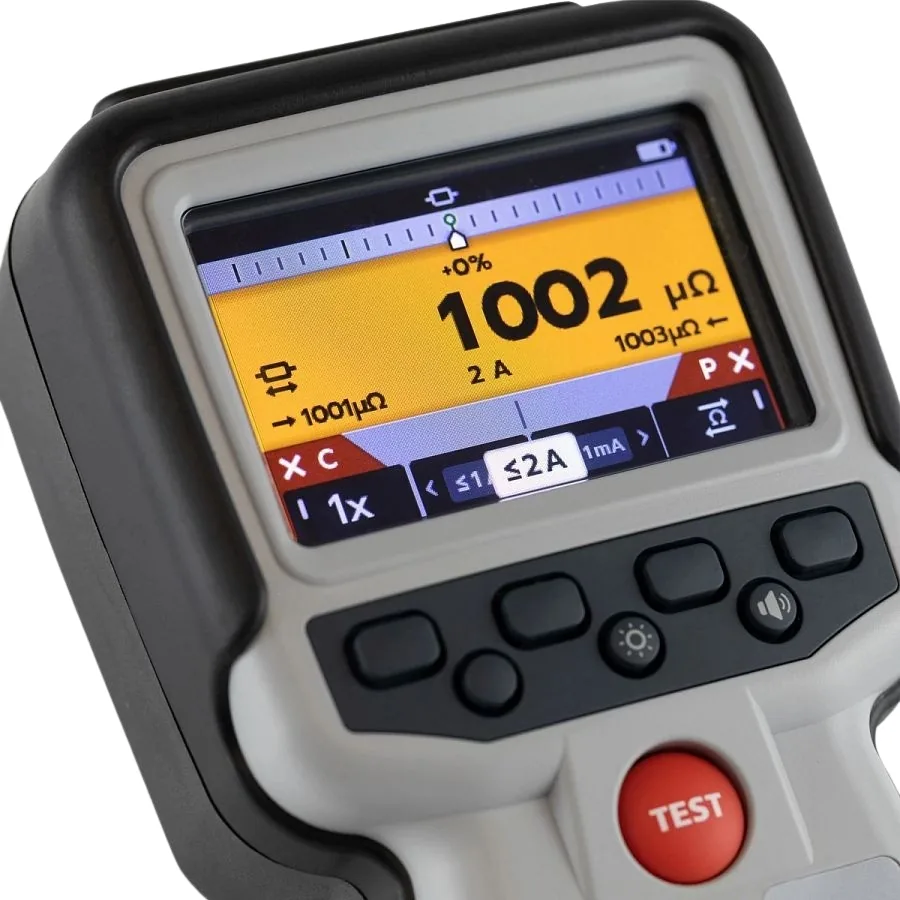

The DLRO2 can measure low resistance values across a wide range of applications, including railways, aircraft, and industry components. This tough device comes with a brand new ‘difference’ meter that allows repetitive measurements to be easily compared with an initial reference measurement. The difference meter also translates the percentage difference to a needle/pointer movement, making the changes clear to see.
If your applications require long test leads, then the DLRO2 can provide this without compromising test speed or safety. It has a dedicated long lead test to optimise the output, and this long test lead function is able to provide up to 1 A of test current into 4 ohms resistance. The DLRO2, with its optional cable reel test leads, is therefore ideal for testing wind turbine and avionic lightning protection applications.
Specifications
- Data storage and communication
- None
- Max output current (DC)
- 2 A
- Power source
- Battery
- Safety features
- CATIV 300 V
