HVcontrol - HV Test Control Unit

The HVcontrol unit combines all standard functions required to manually operate a high voltage transformer. It includes a safety contact loop, the measurement of primary and secondary current, as well as of the primary voltage. User-settable limits for the primary and secondary current trip the main circuit breaker. The safety loop, as well as the emergency stop is hard-wired and equipped with forced contacts.

Due to its flexible design, the HVcontrol can be used on any high voltage test set. Especially, in case of the modernization of old test sets, the HVcontrol offers a multitude of improvements if compared with conventional relay-based controls.

The unit comes with rigid solid-state piezo push buttons. Each of these control buttons has an illuminated ring to indicate the state of the function controlled by this specific button. This allows an easy and intuitive operation of the HVcontrol.

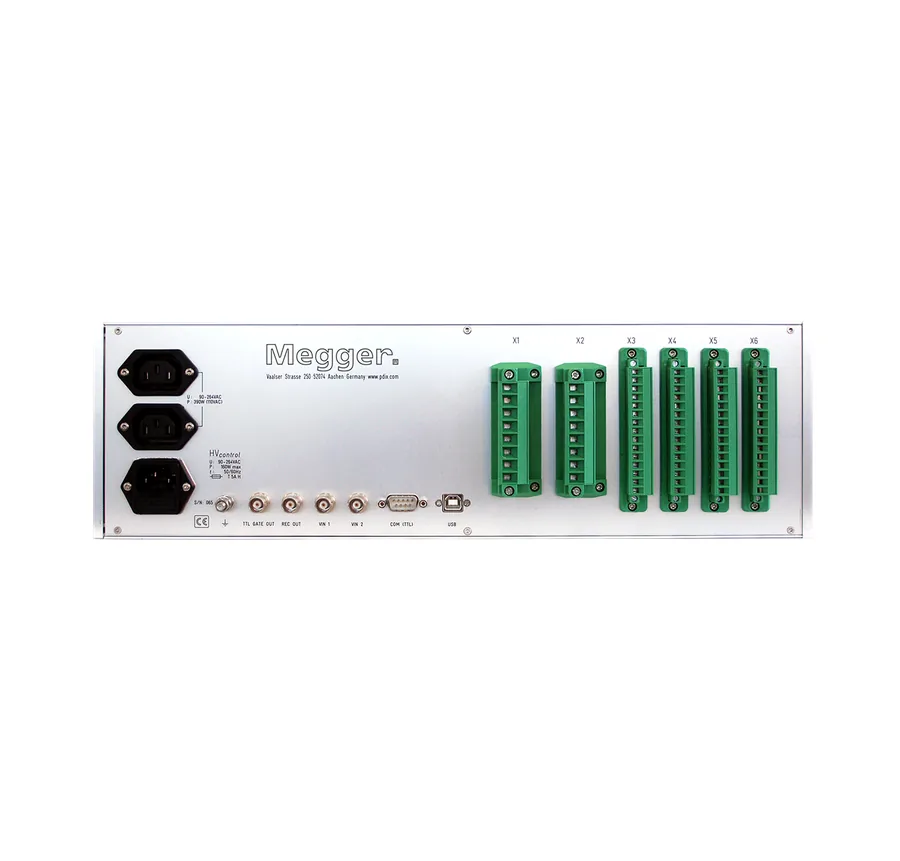

The HVcontrol comes in a 19"-subrack (3HU). This makes it an easy replacement of older controls having the same size. On its rear panel, the HVcontrol offers conveniently detachable screw terminals for the different controls and optional instruments.

To receive software updates or user guides, please contact support.pdix@megger.com or call +49 241 74927. Please have your device serial number ready or state your reason for interest.
